UL70E

The UL70E is an underground electric scooptram with a total weight of 20,000 kg, equipped with a standard bucket capacity of 3 m³ and a rated loading capacity of 7 tons. It is suitable for tunnels with dimensions of 3.5 m x 3.5 m or larger. Designed for loading, transporting, and unloading mined rock in underground mining operations, the UL70E is built to withstand the harsh conditions of underground environments.

Characteristics

   1) Features renowned domestic and international hydraulic components, including BOMAC oil pumps from the USA, Eaton hydraulic hoses, and Rexroth valve groups from Germany;

   2）Equipped with an imported Dana drive axle from the USA;

   3）All gauges and alarm functions are integrated into a single control panel.

   4）The steering and control levers are ergonomically designed for ease of use.

   5）The manual lubrication system and pressure detection system are also centrally arranged.

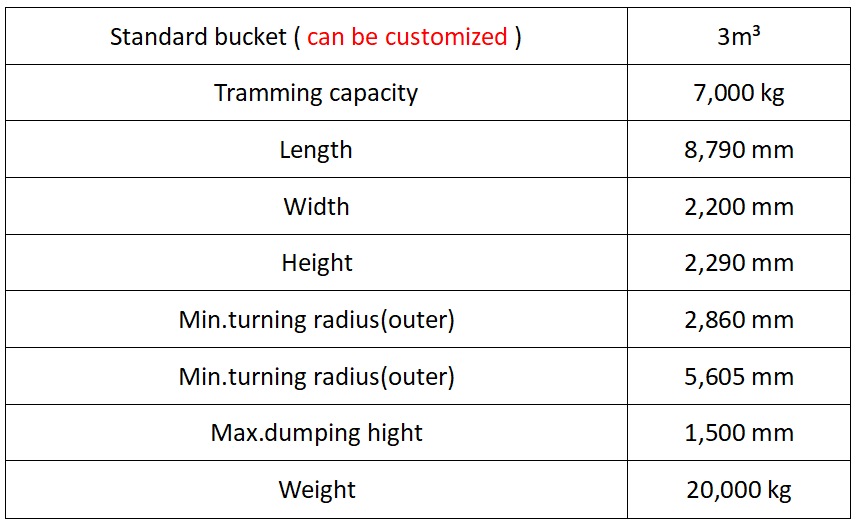

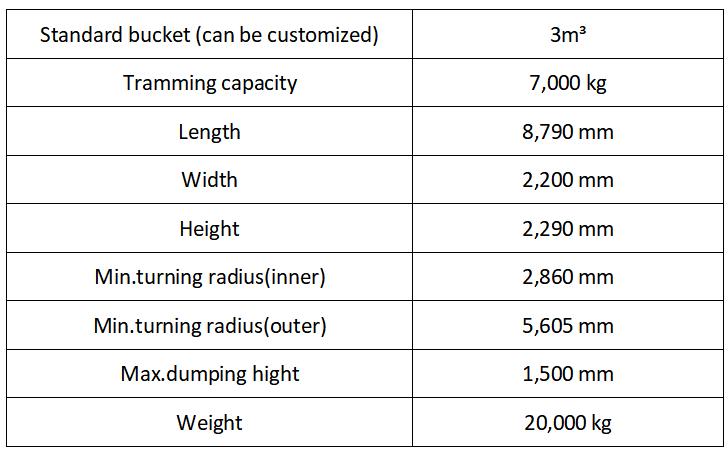

SPECS
