UL100E

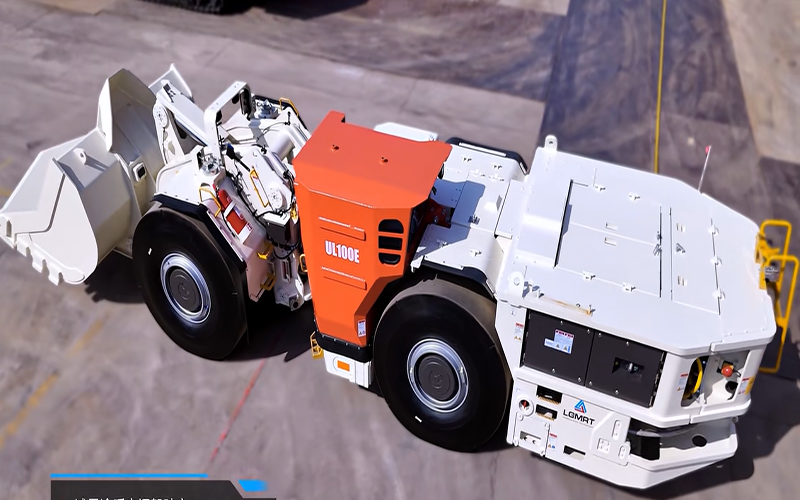

The UL100E is a 10-ton underground electric loader, designed for tunnels and roadways of 3.8 × 3.8 meters or larger. It is powered by a 132 kW electric motor and features a Dana drive system with torque converter, transmission, and Kessler drive axles.

With a durable bucket and intelligent electronic controls, the UL100E delivers fast loading, high productivity, and reliable performance. Its eco-friendly electric power also improves the working environment and reduces operating costs, making it an ideal choice for high-intensity mining operations.

Characteristics

WEG 132kW motor with IP65 protection-bulit for demanding underground conditions
The combination of a box -section boom, Z-type reversal six-link mechanism,and deep-V reinforced bucket delivers high breakout forece for fast, full bucket loading
Elecrtionically controlled automatic shifting respons quickly, reducing haulage time
The center hinge joint utlizes self-aligning bearings and feinforiced pins to ensure smooth operation and long service life.
The bucket cutting edges are fitted with HARDOX 500 wear-resistant steel plates, while critical connections use German-standard cables, IP67-rated connectors, and MA-certified Eaton hoses for outstanding durability.

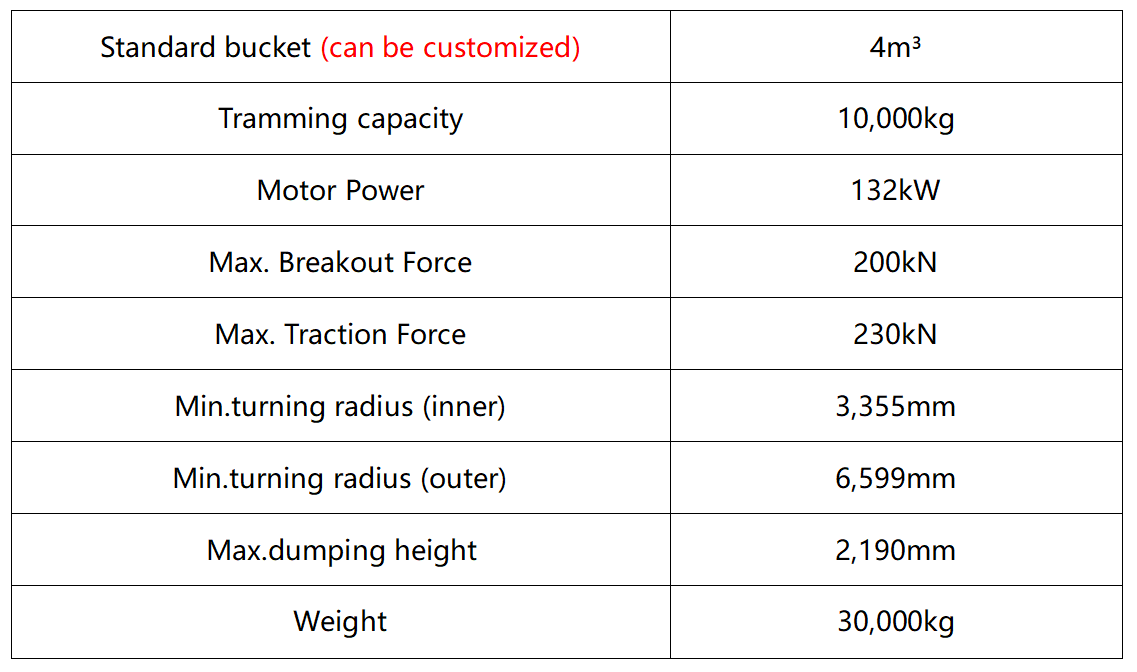

Technical specification
