SDC170

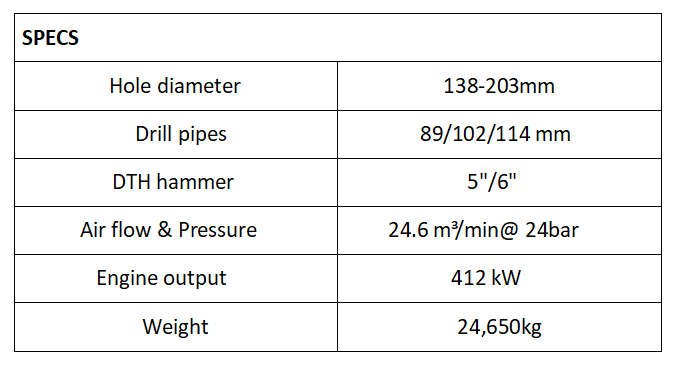

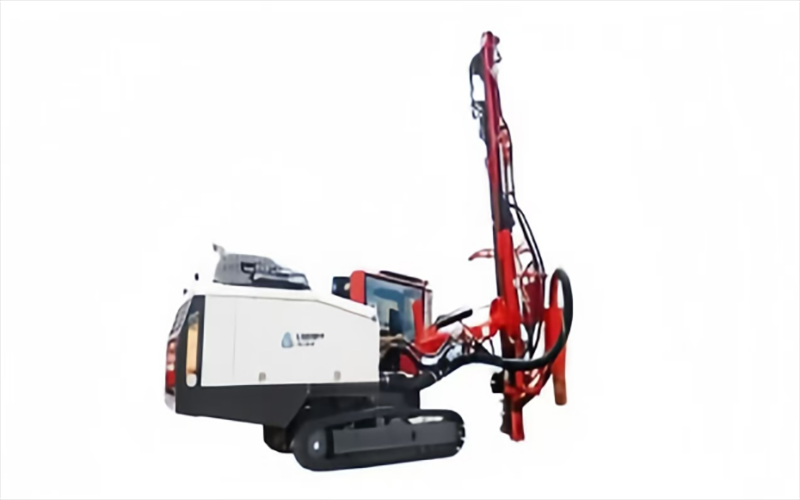

The SDC170 is a fully hydraulic, down-the-hole (DTH) drilling rig for open-pit applications, with a total weight of 24,650 kg. It is designed for drilling hole diameters ranging from 138 to 203 mm and is equipped with a 24.6 m³/min air compressor at 24 bar. This rig is capable of meeting the demands for large-diameter drilling in open-pit mining and quarry operations.

Features

1) The strong power of Sandvik HTRH6 rotary head ensures that the machine can cope with the challenges of various working conditions;

2) The CMS air compressor management system and drilling control system are used to greatly reduce fuel consumption;

3) The control system that is in line with the working conditions has enhanced information integration capabilities, has the characteristics of high reliability and good maintenance;

4) High efficiency dust collection system, meets the environmental protection requirements of green mines,and ensures that the operating environment is clean and tidy.

SDC170
