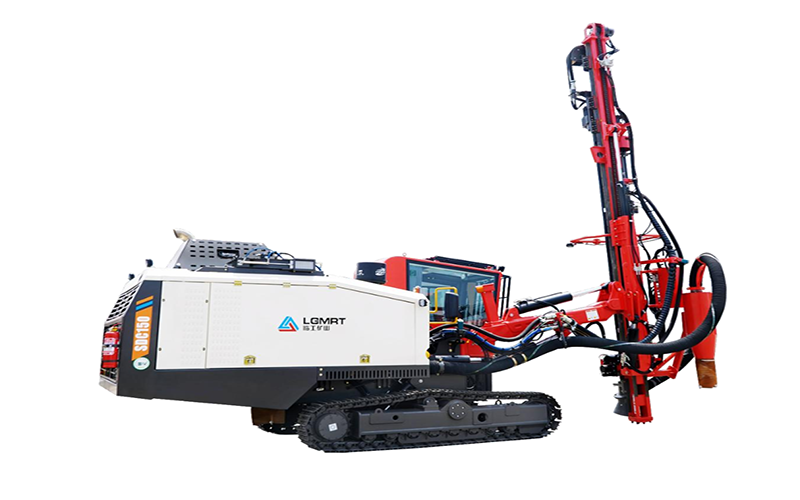

SDC150

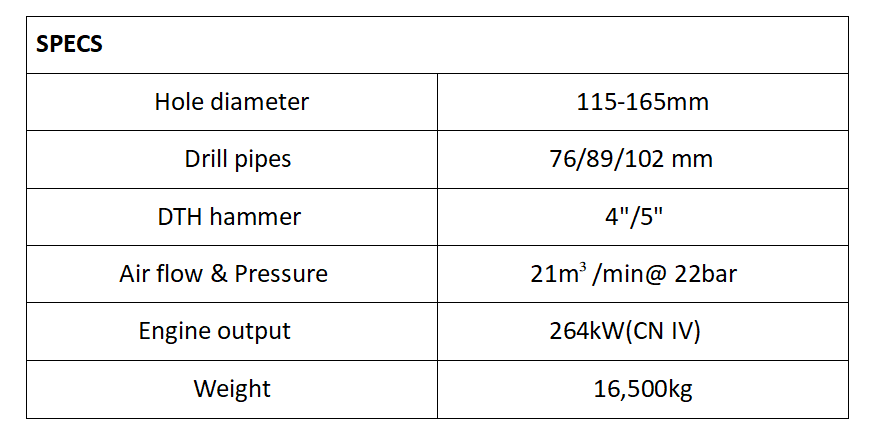

The SDC150 is a crawler-mounted, self-propelled, fully hydraulic DTH (Down-the-Hole) drilling rig with a total weight of 16,500 kg. It is designed for drilling hole diameters ranging from 115 to 165 mm and is equipped with a 21 m³/min air compressor at 22 bar.

The machine is specifically designed for open-pit mining, quarries, and construction applications, utilizing the DTH drilling method for efficient operation.

https://www.youtube.com/watch?v=UIfQ7nkgzq0

Features

• Unsparing in drilled meters: Using advanced and mature drilling technology, SDC 150 provides excellent equipment performance, drilling quality, stability and high operation efficiency.

• Scrooge in fuel consumption: Using CMS air compressor management system, keeping fuel consumption, carbon emission and operating costs as low as possible.

• Seamless cooperation: Joy control on both sides, easy to operate.
