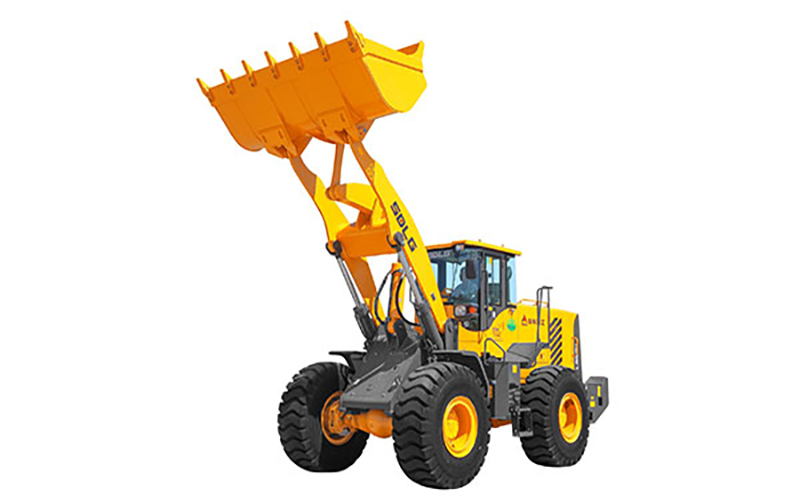

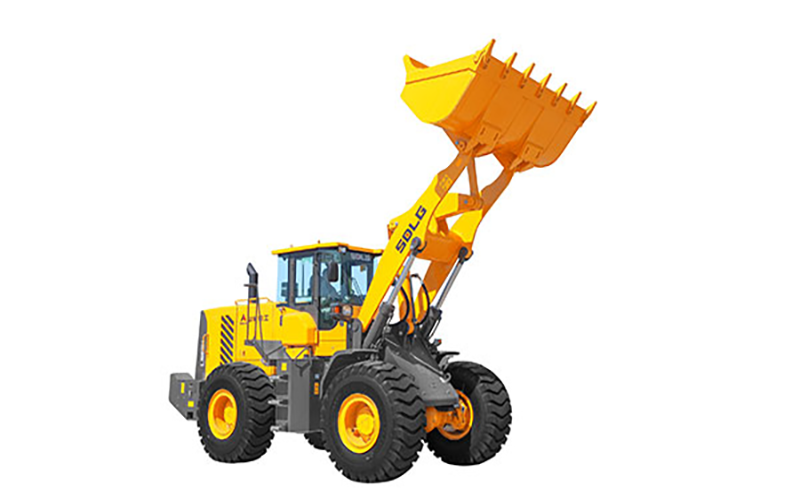

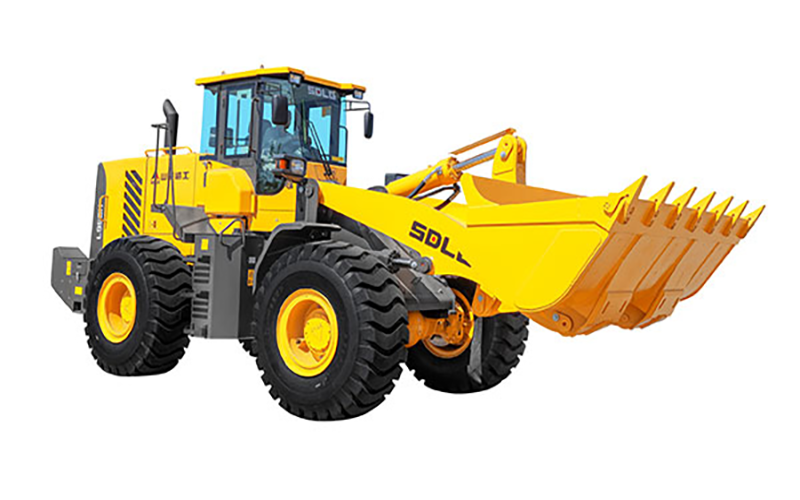

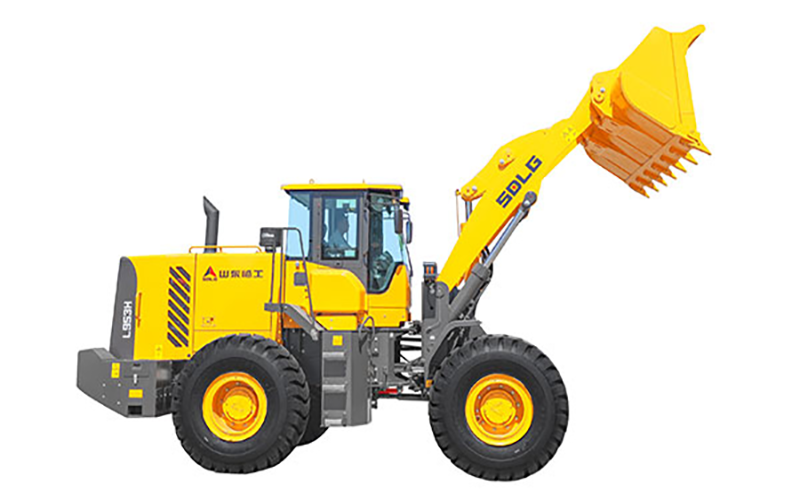

L953H

The L953H loader, introduced by SDLG, is a Stage IV mid-wheelbase model equipped with a Weichai engine. With a total weight of 17,000kg and a maximum breakout force of ≥170kN, it features a bucket capacity range of 2.4 to 4.5m³. It is widely used in heavy-duty environments such as ports, coal mines, open-pit mines, quarries, steel plants, and sand yards.

Characteristics

a. Good Economy

The engine uses multi-point fuel injection (pre-injection + main injection), which makes combustion smoother, reduces combustion noise and peak combustion temperature, resulting in lower emissions and less noise.

b. High Productivity
The machine has an optimal wheelbase, balancing digging force and flexibility, making it versatile and preventing idle equipment, thus ensuring high productivity.

c. Reinforced Design
The reinforced front and rear chassis, with a well-distributed load, provides high load capacity and stability.

SPECS

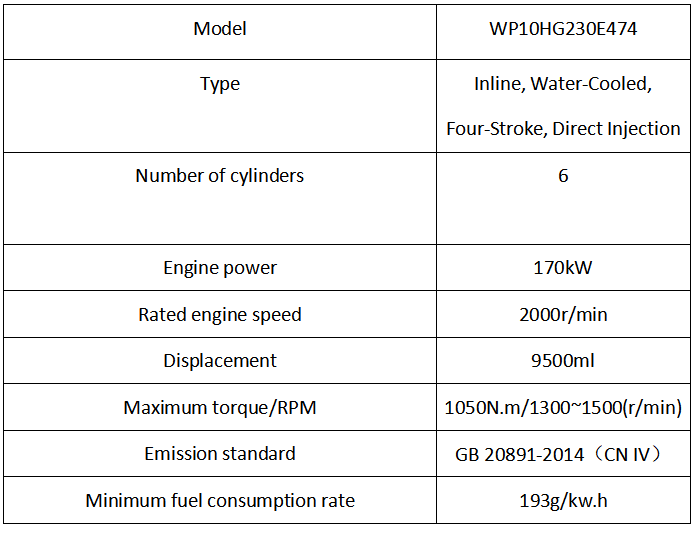

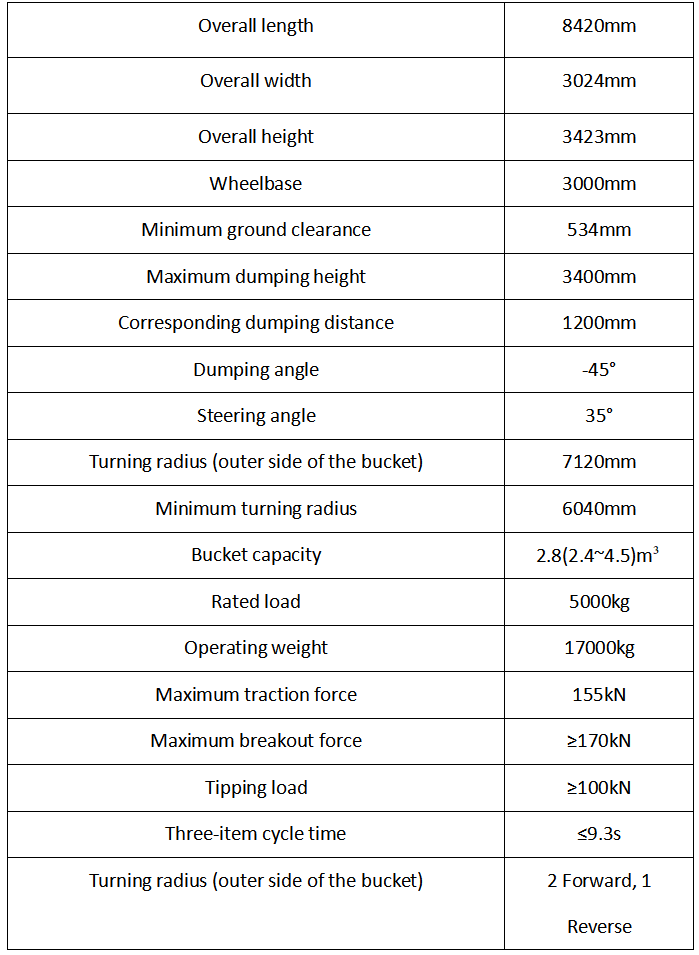

Machine parameters
