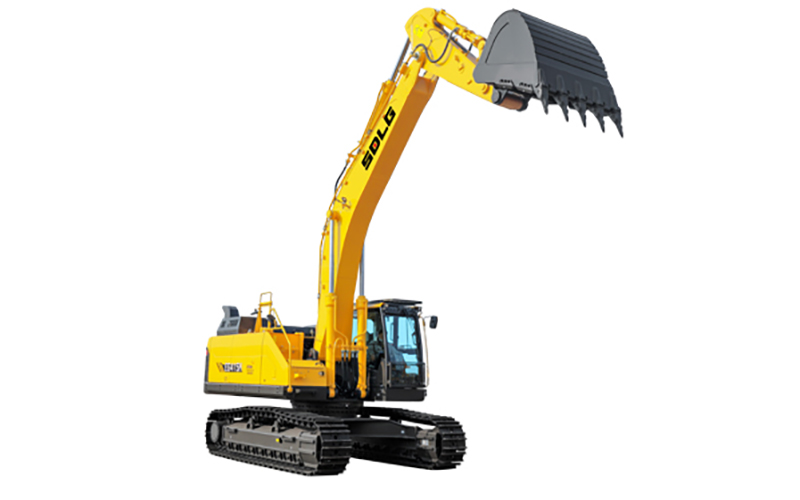

E6690H

The E6690H large excavator is designed for tough working environments, ideal for mining, infrastructure, and large-scale earthmoving. With a total weight of 68,000kg and a 563kW engine, it delivers exceptional power.

The 4.5m³ bucket and 364kN maximum digging force efficiently handle heavy excavation and loading tasks. Its compact and stable design, with dimensions of 12,630mm (L) x 4,190mm (W) x 4,230mm (H), suits a variety of challenging work conditions.

Features

• The 563kW high-power engine provides ample power reserve with low RPM and high torque, ensuring low fuel consumption and high efficiency.

• The fully electronic control system integrates proportional solenoid valves into the main valve, simplifying the hydraulic circuit with reduced pressure loss.

• Dual independent electronic-controlled main pumps and large-diameter main valves optimize power and hydraulic matching, enhancing operational performance and efficiency.

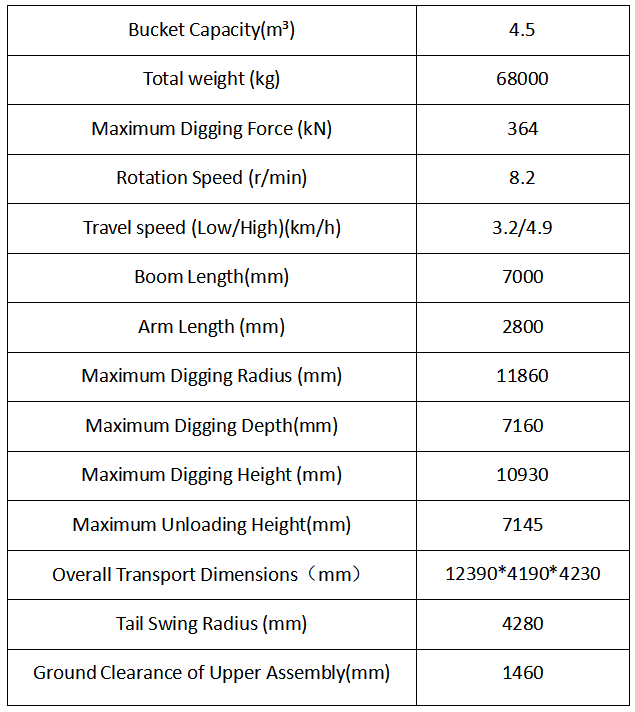

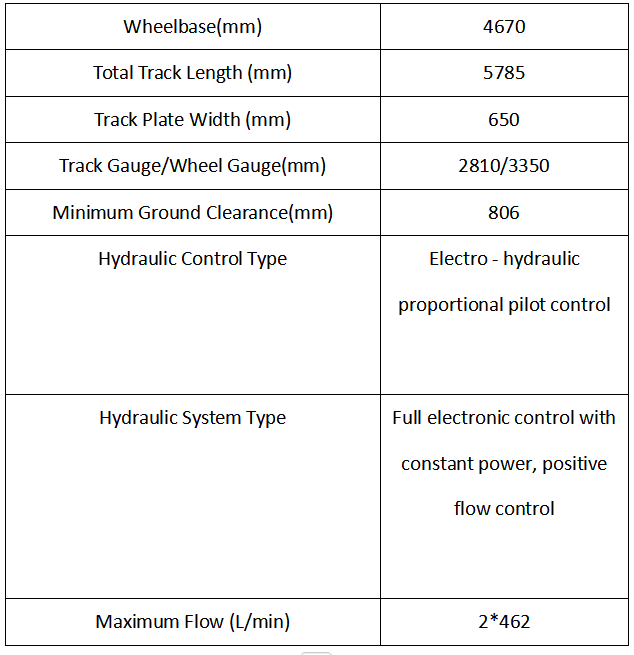

SPECS

Machine Specifications

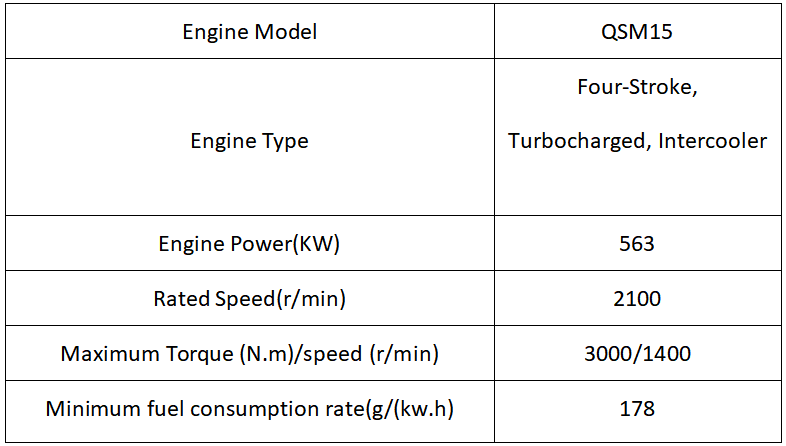

Engine
