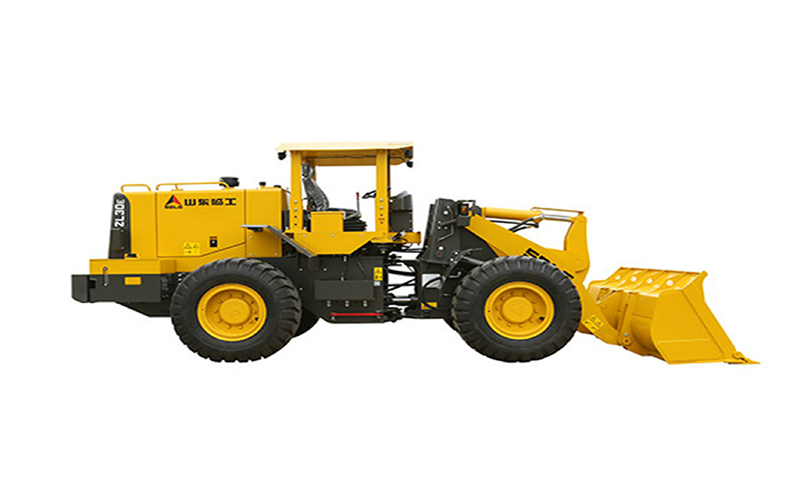

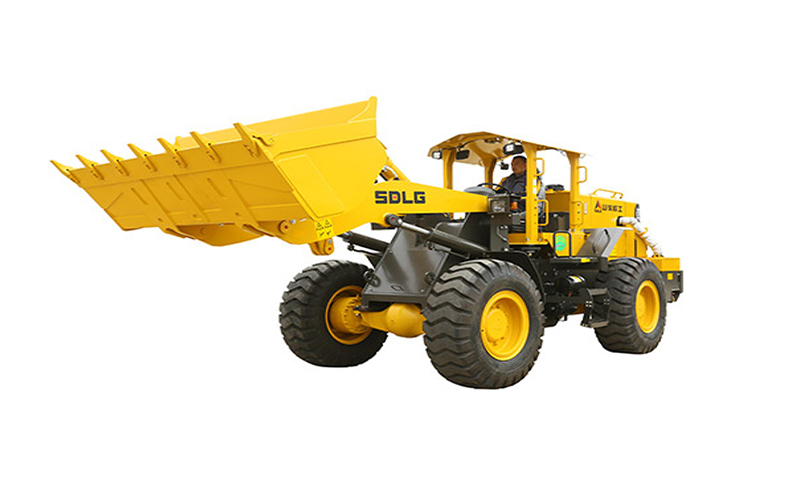

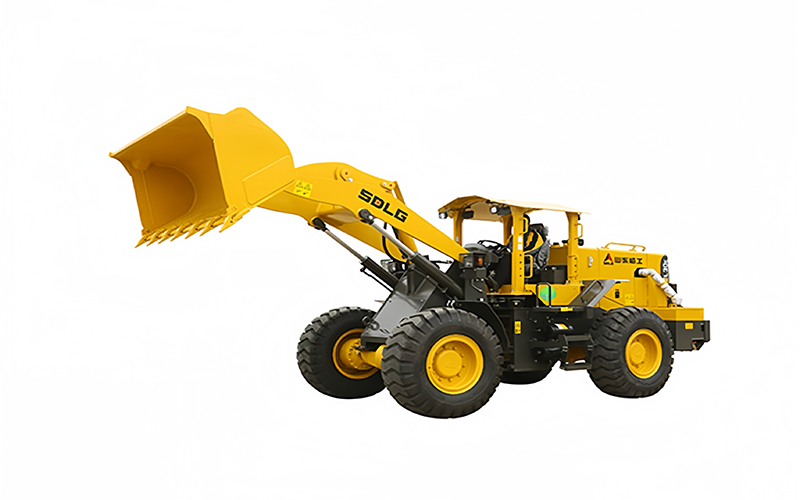

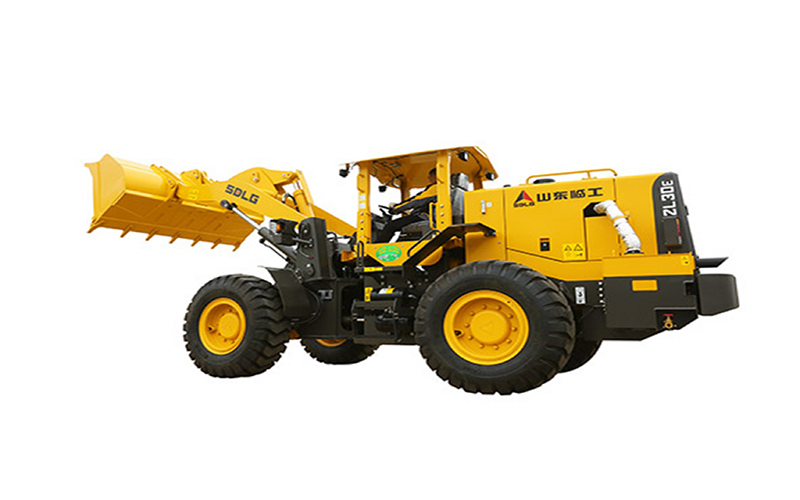

ZL30E(C)

The ZL30E(C) underground loader is designed for mining operations, with a total weight of 11,400kg and a 92kW engine. It offers a maximum breakout force of ≥90kN and a bucket capacity of 1.8m³. Widely used in mines and tunnels for efficient material handling in harsh environments.

Characteristics

Ultra-Low Design：The overall height of the machine is extremely low, making it suitable for operations in confined spaces.

Reinforced Rear：The rear frame is designed with a structural frame, enhancing the reliability of the rear chassis. The counterweight plate is thicker, improving the reliability of the counterweight.

Good Adaptability：The reinforced engine cover is more suitable for underground working conditions. The front side is narrowed to enhance the operator's visibility.

SPECS

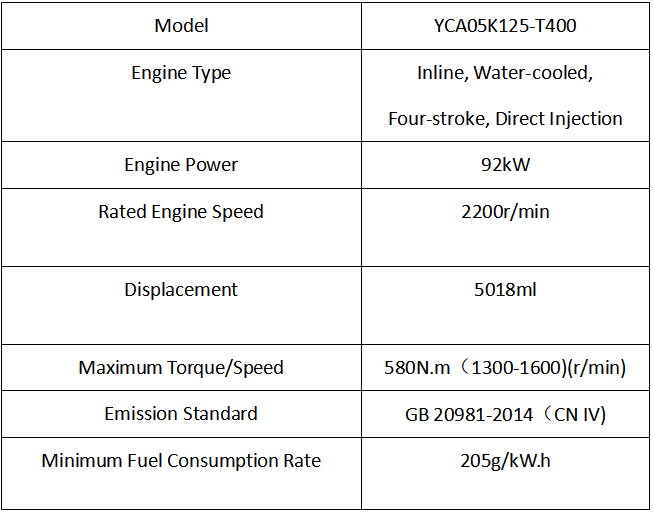

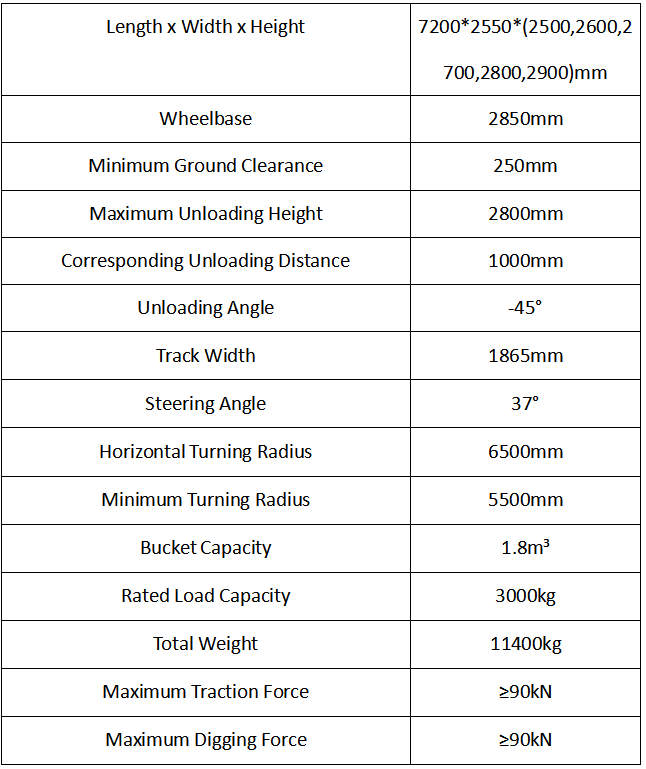

Machine Specifications
