UL70

UL70 series underground scooptrams is used for tunneling, hauling and dumping operation of underground rock. It is capable of adapting to the harsh environment and has the advantages of simple operation and maintenance, high reliability. The tramming capacity of UL70 is 7 ton. UL70 can load 15 ton underground articulated trucks and it is applicable to underground tunnels above 3.5mx3.5m.

Product Features

HIGHER SAFETY

FOPS&ROPS certified safety cab.
POSI-STOP brake system ensures brake safety.

HIGHER RELIABILITY

Renowed and reliable key components are used;
Exceptional key performance management and lean product system.

EASY MAINTENANCE

Daily maintenance can be done on the ground level;
Central lubrication and pressure testing system.

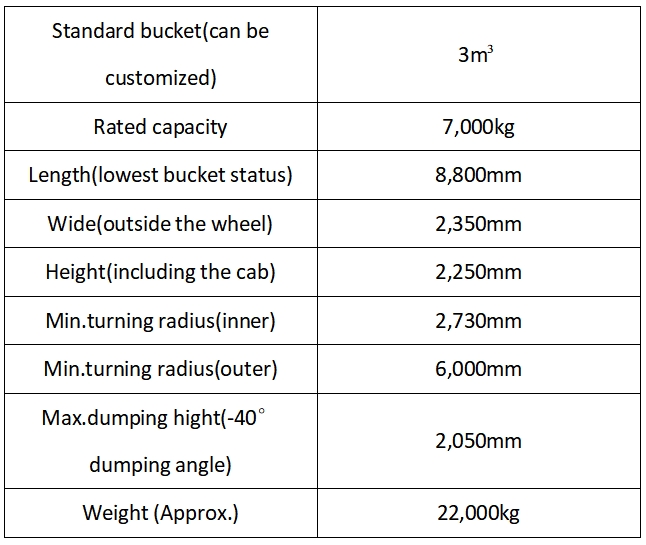

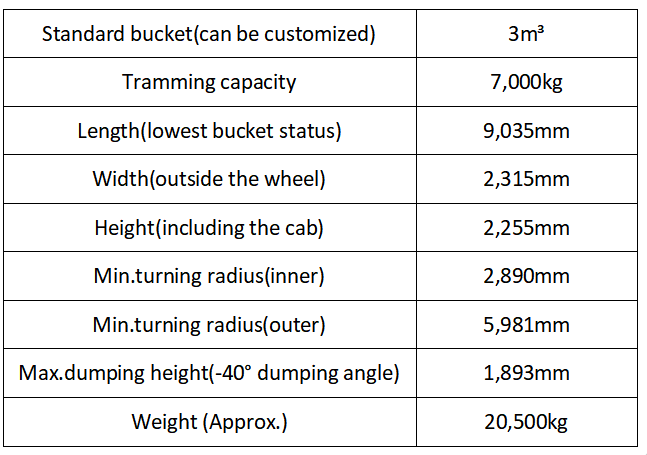

Technical Parameters

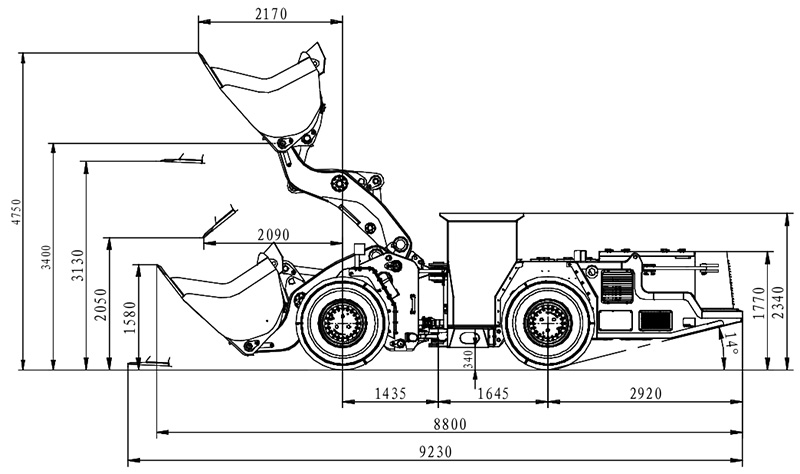

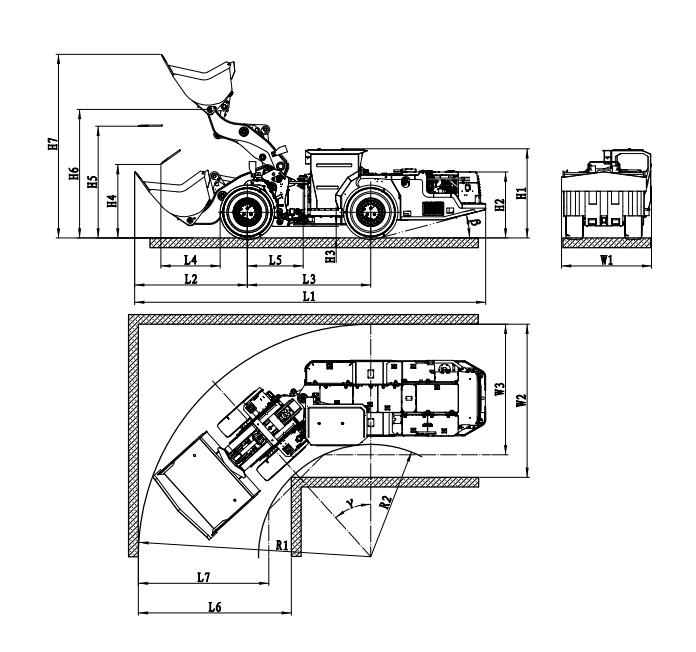

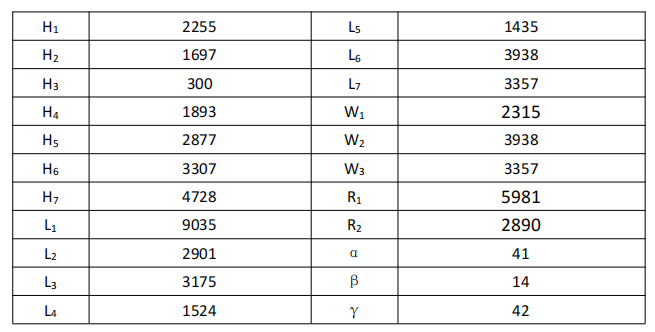

Dimension
