ST120H

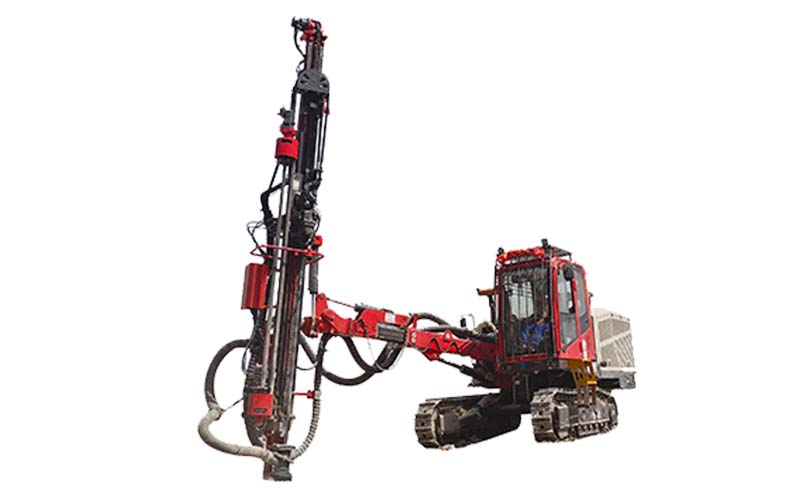

ST120H is a surface hydraulic top-hammer drilling rigs equipped with Sandvik rock drill. It is equipped with a 76~127mm diameter drill bit. The system supports an air pressure of 10 bar, providing powerful pneumatic energy to ensure stability and high efficiency during the drilling process. The telescopic boom equipped with the ST120H can increase the drilling area while improving safety, thereby achieving rapid positioning.

Product Features

*High integrated efficiency

The reliable drilling performance and convenient maintenance of Sandvik rock drill.

*Low operating cost

Load sensitive hydraulic system and air compressor management system greatly reduce fuel consumption.

*Safety and environmental protection

The design concept of “SAFETY FIRST” and “ENVIRONMENTAL PROTECTION” ensures the construction of green mines.

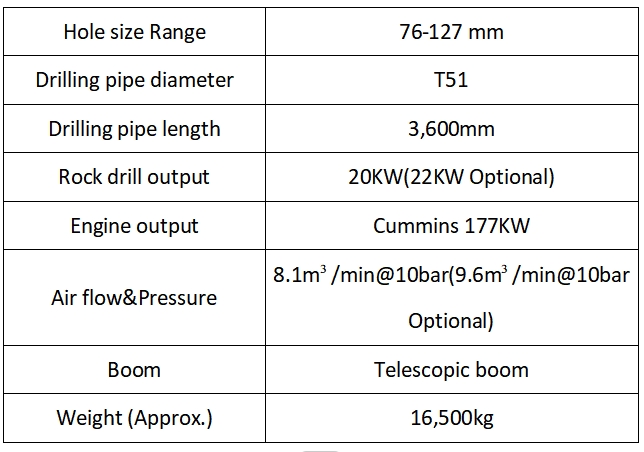

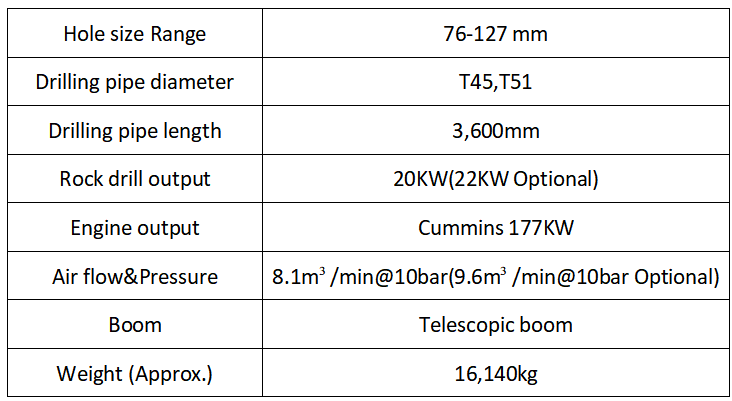

Technical Parameters

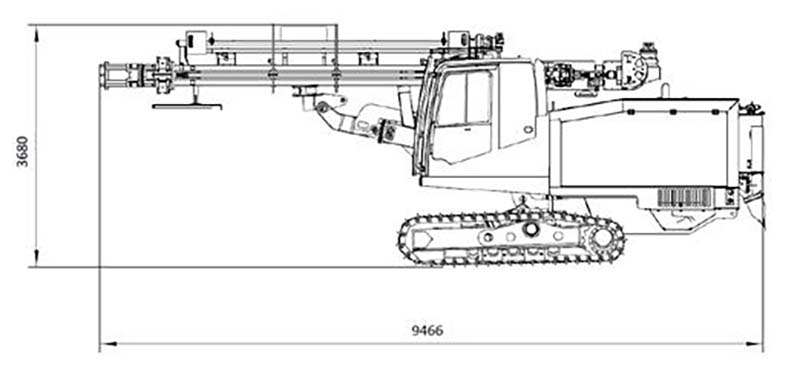

Dimensions

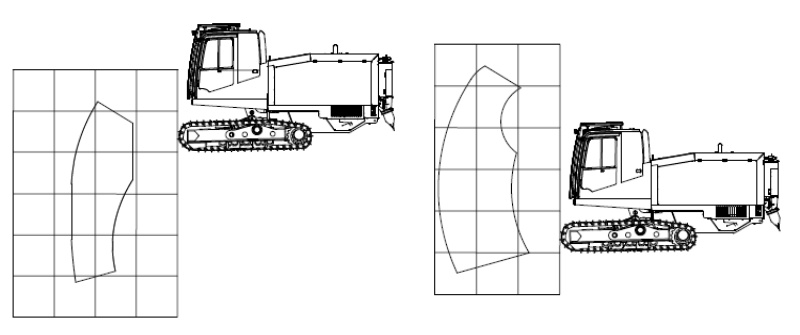

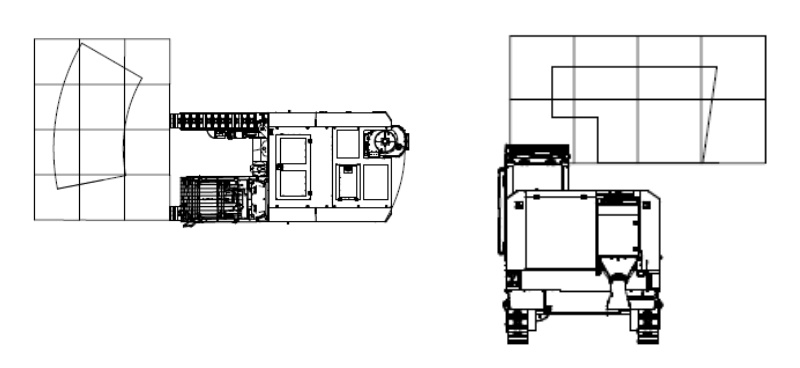

Drilling Coverage Area
