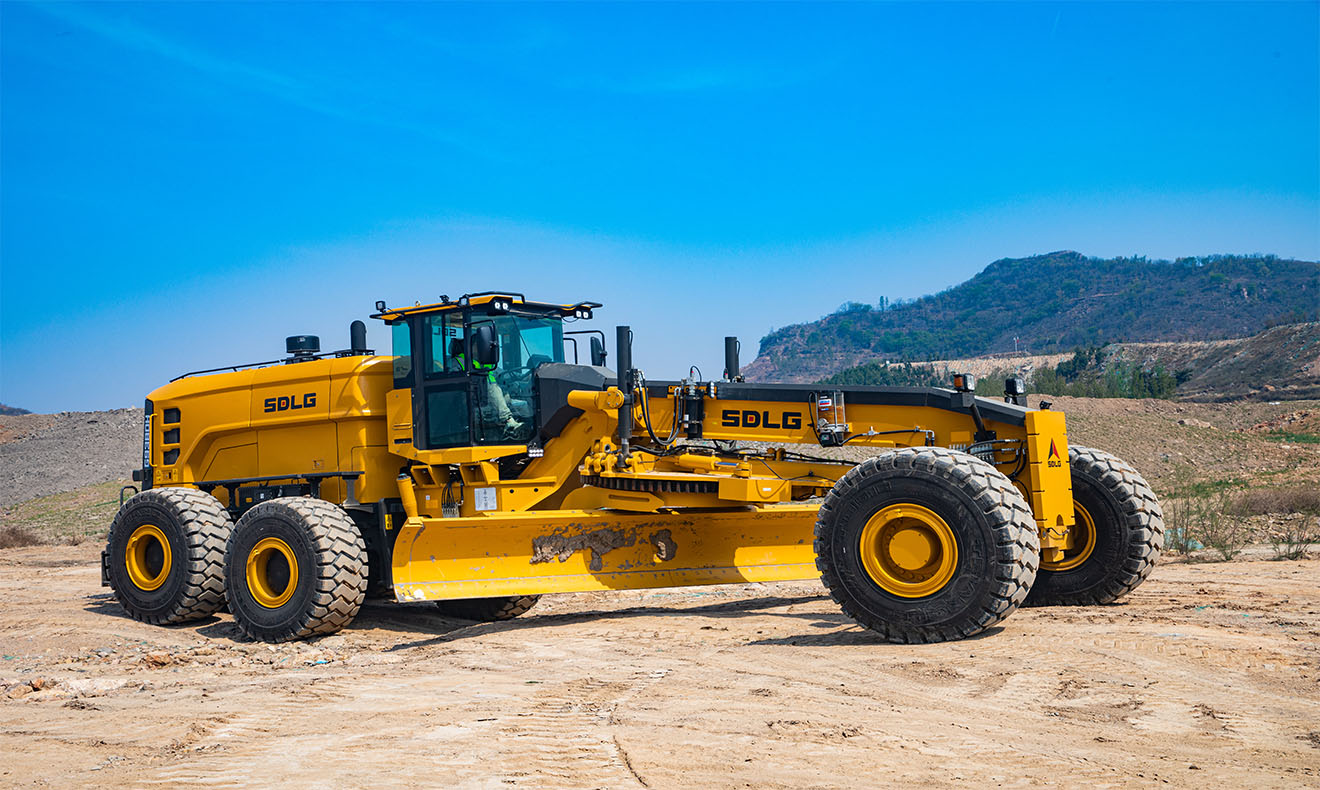

G9380H

The G9380H motor grader is a high-performance machine with a total weight of 37,200 kg, designed for efficient leveling in harsh environments. It features a maximum front wheel tilt angle of ±18°, a front axle swing angle of ±16°, and a front wheel steering angle of ±15°, providing excellent flexibility and stability. Ideal for road construction, mining area leveling, and large-scale earthworks, it ensures high efficiency and long-lasting performance.

Features

— The electronically controlled Stage IV engine is efficiently matched with a high-end transmission and features a torque converter lock-up function, ensuring superior drive performance and fuel efficiency.

— Electronic pilot control system with an independent control unit, adjustable multi-degree armrests, ergonomic asymmetric control levers, cruise control, and automatic gear shifting, significantly reducing operator fatigue

— Heavy-duty gear-driven mining axle with advanced dual-circuit wet brake system for safety and reliability.

— High-strength structural design, equipped with an overload protection system, ensuring long service life for heavy-duty, continuous operations in mining environments.

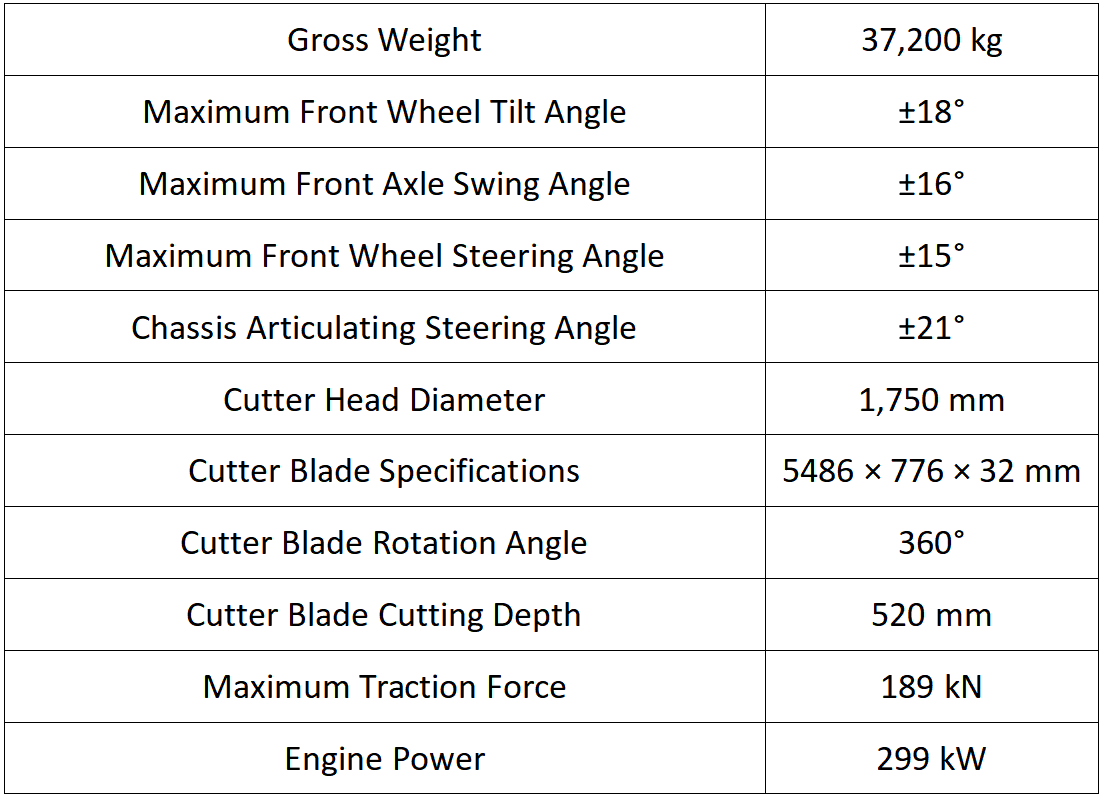

Technical Parameters
